Rice Cooker
For Chinese families, rice cookers are essential kitchen appliances with very high per capita ownership. There is a very strong market demand for both high-end product innovation and low-end product replacement. In order to meet this demand, Hitenx has launched a mature overall solution for rice cookers. The scheme consists of AC-DC power chip and MCU main control, MCU built-in touch module, LED/LCD display driver module, multi-channel PWM output, ADC with reference voltage source and EEPROM memory module...

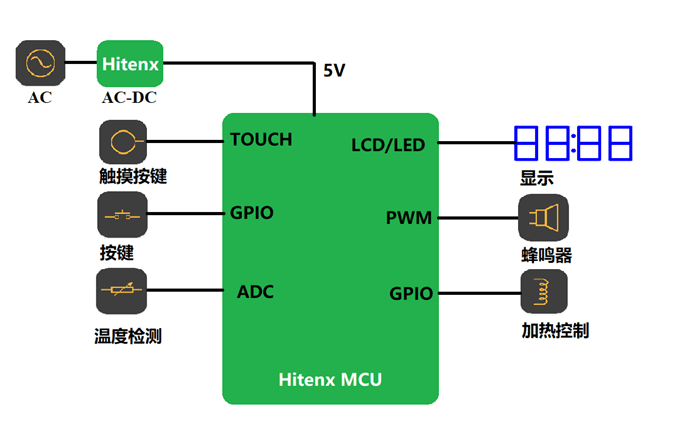

Scheme Topology
Selection Table
- Product Name(W) Function Description Application
- TM52F1376 2T 8051 main control chip, 16K Falsh, 512 byte Sram, 128 byte EEProm, ADC * 24, PWM * 3, UART * 2, IIC, LED/LCD module Electric bicycle instrument, Small appliance, Rice cooker
- TM52eF1375A The TM52 series eF1375A is a new, fast 8051 architecture MCU with built-in 32K FLASH, 1280 Sram, 128 EEPRom, TK * 20, ADC * 16, PWM * 3, LED/LCD modules Small appliance, Rice cooker
- TM52eF1386 The TM52 series eF1386 is a new, fast 8051 architecture MCU with built-in 64K Flash, 4352 Sram, TK * 21 * 2, ADC * 45, PWM * 9, UART * 3, SPI, IIC, LED/LCD modules Small appliance/coffee machine/Rice cooker
