Electric Fan

The three-phase low-voltage DC fan has the characteristics of high efficiency, low noise and long life. For BLDC fan motor drive, Hitenx has introduced a cost-effective solution. The scheme consists of AC-DC power chip and MCU main control, MCU built-in touch module, LED/LCD display driver module, multi-channel PWM output, UART communication interface, ADC with reference voltage source, EEPROM memory and other modules...

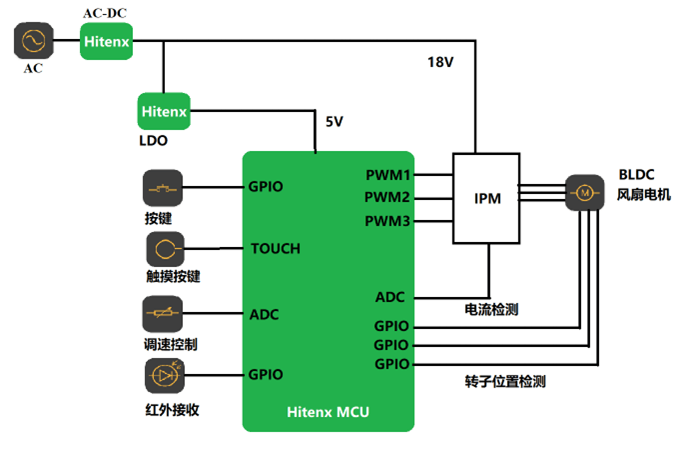

Scheme Topology


Selection Table

  • Product Name(W) Function Description Application
  • TM52FN8276 The TM52 series FN8276 is a new, fast 8051 architecture MCU with built-in modules such as 16K Flash, 1024 Sram, 128 EEPRom, LED/LCD, TK * 19, ADC * 16, UART, SPI, IIC, etc Small appliance, Induction cooking, Fan heater, ice maker, electric fan
  • *TM56M1522 RISC Reduced Instruction Master Chip, 4K * 16bit MTP, 256 byte Sram, 12-bit ADC * 13, CMP * 1, 16 bit PWM * 6 Small appliance, atomizers, electric fans

Scheme Information

  • File Name Version Describe Updated Date Download
  • Touchset_V246.rar V246 Touch key library function generation software 2023/06/26
  • Touchkey_V42.rar V42 Touch product debugging tool 2023/06/26
