With the development of the market, the application of IH heating technology has gradually extended from induction stoves to electric water heaters, milk foam machines, rice cookers and other fields. Industry and client requirements for the performance and cost of IH products are gradually increasing. For this reason, Hitenx has launched a high-performance and cost-effective IH solution based on traditional technology. The solution consists of AC-DC power chip and MCU main control/control panel chip. The PPG module in the main control MCU generates IH drive signal, and 5 sets of built-in comparators are used for safety protection and signal synchronization. Built-in OPA and ADC for current sampling...

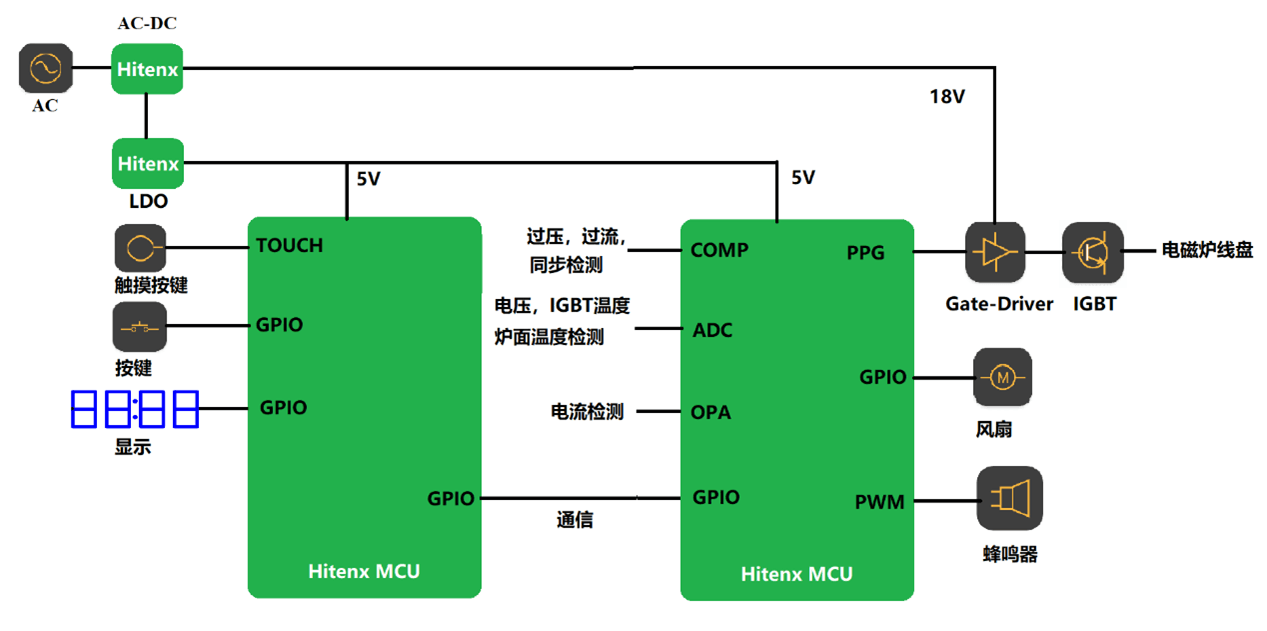

Scheme Topology


Selection Table

  • Product Name(W) Function Description Application
  • TM52F8558 TM52系列8558是一个新的,快速的8051架构MCU,内置电磁炉专用PPM,COMP*5,OPA*1模组 小家电,电磁炉(电源)
  • TM56F1543 RISC Reduced Instruction Master Chip, 8K * 16bit Flash, 496 byte Sram, 128 byte EEProm, TK * 24, ADC * 14 Small household appliances, Induction cooker (panel)
  • TM52FN8276 The TM52 series FN8276 is a new, fast 8051 architecture MCU with built-in modules such as 16K Flash, 1024 Sram, 128 EEPRom, LED/LCD, TK * 19, ADC * 16, UART, SPI, IIC, etc Small appliance, Induction cooking, Fan heater, ice maker, electric fan

Scheme Information

  • File Name Version Describe Updated Date Download
